Technical Data for US Grout Products



The grout characteristics itemized below are for a water/cement ratio of 0.8/1 by weight. Those items with an asterisk (*) can be adjusted as required by the application.

Technical Data: Type SD

PROPERTY TYPICAL RESULTS STANDARDS & CONDITIONS
DRY GROUT [SD]
Dispersant 0.4% -1% by weight of dry grout
Color Cement Grey Visual
Particle Size d90 ‹ 8 microns; average 3.0 microns SediGraph 5100
Surface Area 15,110 cm2/gram ASTM C-204 (Blaine Fineness)
Dry Loose Unit Weight 0.497 grams/cc
Dry Density (Specific Gravity) 2.70 grams/cm3 ASTM C-188
Dry Weight/Wet Volume 1.01 kg/liter
WET GROUT [SD]
Water/Grout 0.8/1 by weight of dry grout*
Wet Density (Specific Gravity) 1.50 - 1.52 grams/cc* API RP 13B-1 (Baroid Mud Balance) ASTM 4380
Initial Viscosity 35 - 60 seconds* API RP 13B-1 (Marsh Cone) D6910
Internal Cohesion 1.22 Pascals* Lombardi Plate
Initial Gelation 2.0 - 5.0 hours* Wally Baker Shear Value
Final Gelation 4.5 - 7.0 hours* Wally Baker Shear Value
Initial Vicat Needle Set 8 - 10 hours* ASTM C-191 (Vicat Needle)
Final Vicat Needle Set 9 - 11 hours* ASTM C-191 (Vicat Needle)
Period of Workability 2.5 - 5.0 hours*
Compressive Strength ›1000 psi @7 days* ASTM C 39/C 39M
Shrinkage –0.0260% ASTM C-490, C-596, C-157
Bleeding 0.50% ASTM C-940
Hydrational Heat 31º C Adiabatic Chamber
Pressure Filtration 0.100 - 0.103 minutes API Filter Press
Permeability 1x10E–14 cm/second per custom equipment at Atomic Energy of Canada
Sulfate Resistant Resistant to sulfate attack Type V Sulfate Resistant Cement
Items with an asterisk (*) can be adjusted as required by the application.
—Download ULTRAFINE TYPE SD Datasheet (PDF)
—Download Ultrafine SD SDS (PDF)

Technical Data: Type VX

PROPERTY TYPICAL RESULTS STANDARDS & CONDITIONS
DRY GROUT [VX]
Superplasticizer** 0.125% by weight
Color Cement Grey Visual
Particle Size 90% ‹ 8 microns; average 3 microns SediGraph 5100
Surface Area 15,110 cm2/gram ASTM C-204
Loose Unit Weight 0.497 grams/cc
Specific Gravity 2.70 grams/cm3 Accupyc 1330
Dry Weight/Wet Volume 1.01 kg/liter
WET GROUT [VX]
US Grout Super P logo—with the addition of .9% USG-Super by weight
Water/Dry Grout** 0.8/1 by weight
Wet Density (Specific Gravity)* 1.54 grams/cc API RP 13B-1 (Baroid Mud Balance) ASTM 4380
Initial Viscosity* 35 ~ 60 seconds API RP 13B-1 (Marsh Cone) D6910
Internal Cohesion* 1.22 Pascals Lombardi Plate
Intitial Gelation* 2.0 ~ 5.0 hours Wally Baker Shear Vane
Final Gelation* 4.5 ~ 7.0 hours Wally Baker Shear Vane
Initial Vicat Needle Set* 8 – 10 hours ASTM C-191
Final Vicat Needle Set* 9 – 10 hours ASTM C-191
Period of Workability* 2.5 ~ 5.0 hours
Compressive Strength ASTM C 39/C 39M ›1000 psi @7 days*
Shrinkage* –0.0260% ASTM C-490, C-596, C-157
Bleeding* 0.50% ASTM C-940
Hydrational Heat* 31°C Adiabatic Chamber
Pressure Filtration* 0.100 ~ 0.103 min–1/2 API Filter Press
Sulfate Resistant Resistant to Attack Type V Cement
Permeability* 1x10E–14 cm/sec per custom equipment at Atomic Energy of Canada
*Varies with water/cement ratio and superplasticizer content.
**Recommended starting mix
—Download ULTRAFINE TYPE VX Datasheet (PDF)
—Download Ultrafine VX SDS (PDF)
—Download USG-SuperP SDS (PDF)
NOTE: A high shear, colloidal grout mixer, such as the COLCRETE® brand, should be used for ultrafine cementitious grout.

Expert Support

As the world-wide distributor for US Grout products, Avanti International (www.avantigrout.com • 1-800-877-2570) provides the customer service, objective professional advice, material estimates, and the caliber of world-class technical support that comes only from over 35 years of geotechnical experience.

Data Sheets

Ultrafine Type SD Grout Datasheet (PDF)

Ultrafine Type VX Grout Datasheet (PDF)

Ultrafine Type SD SDS–Safety Datasheet (PDF)

Ultrafine Type VX SDS–Safety Datasheet (PDF)

USG-Super P SDS–Safety Datasheet (PDF)

return to top

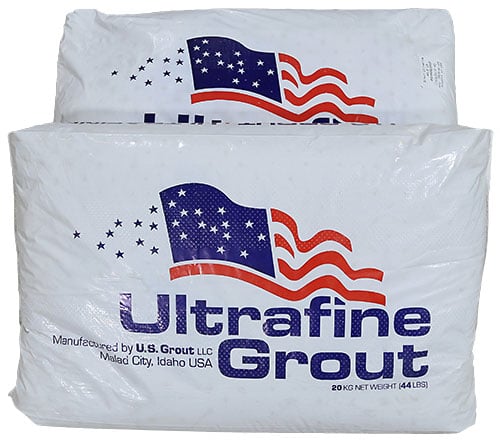

US Grout 20kg Bags
